Designed for vehicles with limited ground clearance, this adapter lowers the lifting point while maintaining stability and access.
CLHM-EL90-LP

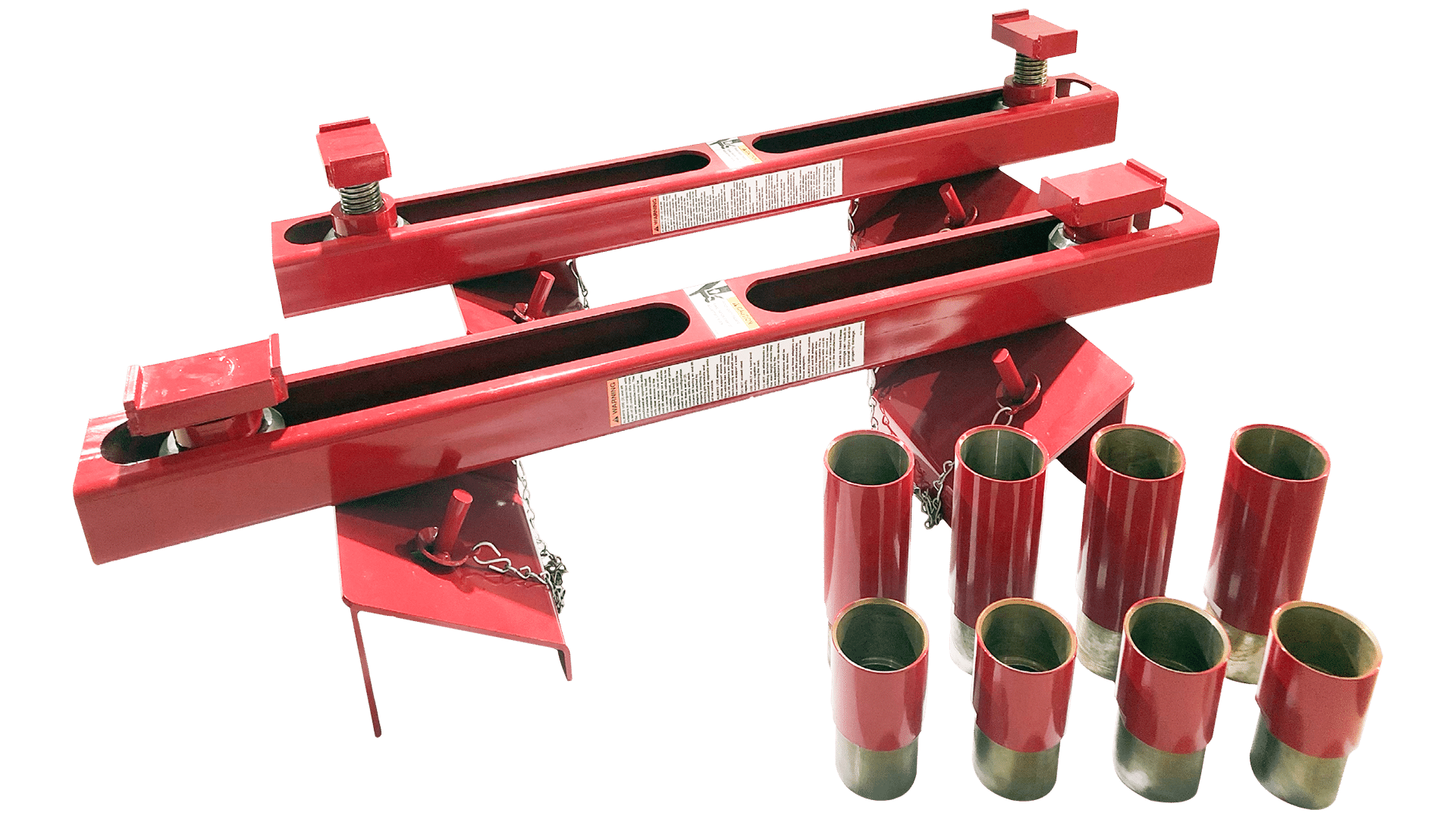

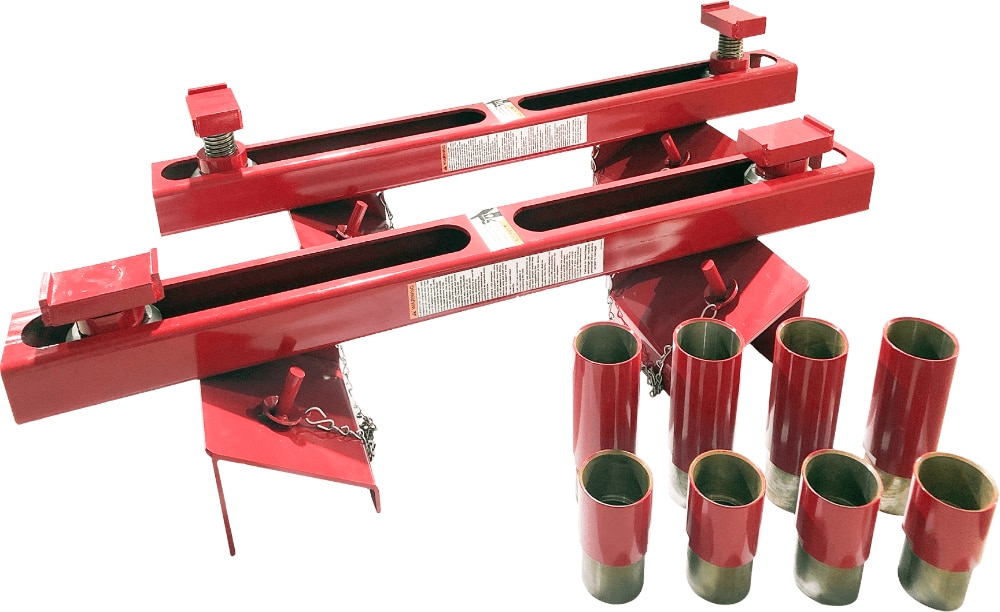

CLHM Lower Profile End Lift Adapter
Specifications
Specifications
| Part Number | CLHM-EL90-LP |
|---|---|
| Overall Length | 49” |
| Overall Width | 10.125” |
| Minimum Starting Height | 11” |
| Minimum Lift Pad Spread-Center to Center | 6” |
| Maximum Lift Pad Spread-Center to Center | 44.5” |
| Minimum Lift Pad Clearance from Cross Member | 1.8” |
| Maximum Lift Pad Clearance from Cross Member | 3.65”(12.4”) |
| Lift Pad Opening | 4.5” |
| Weight | 56 lbs |
