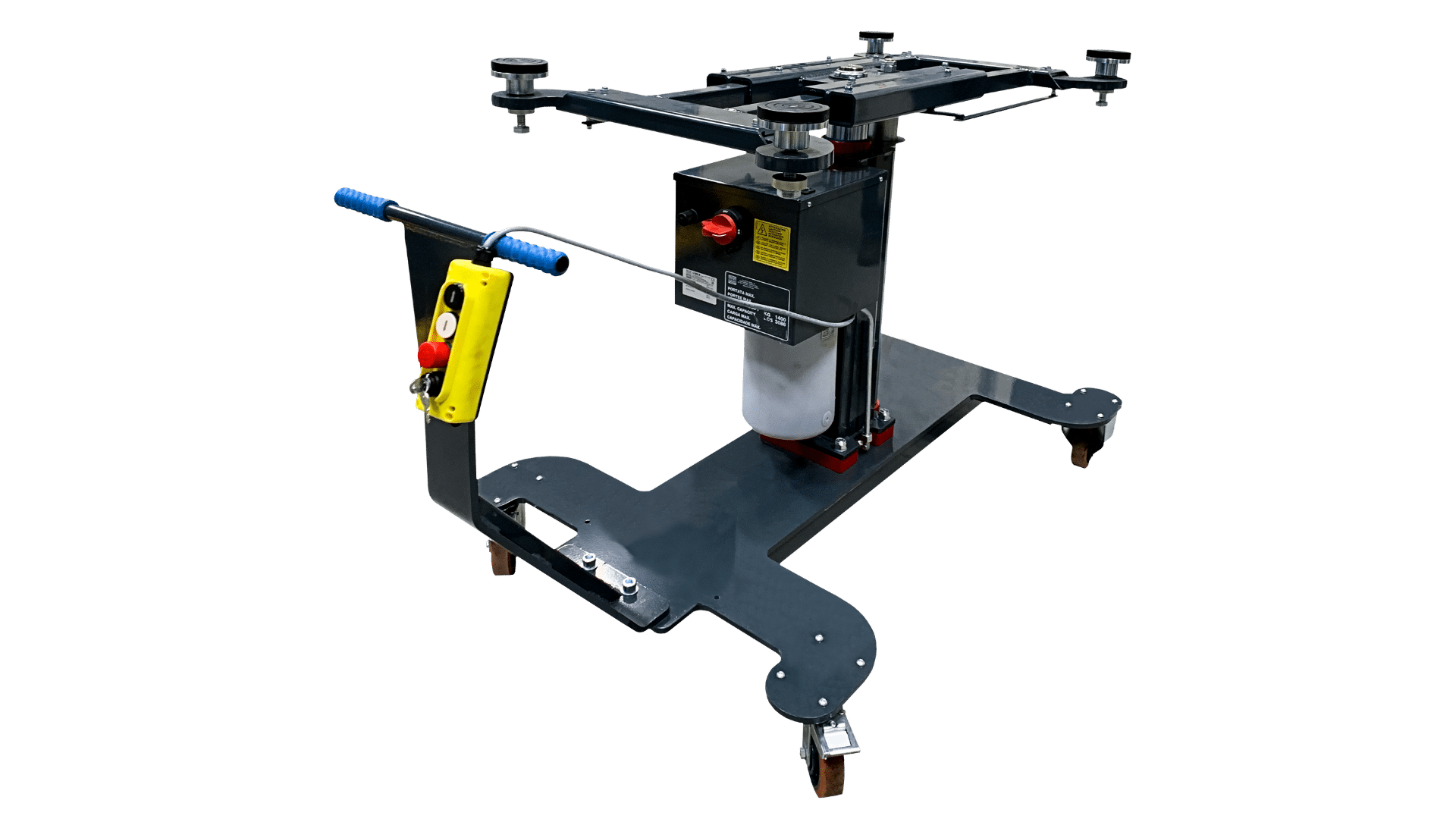

Challenger's Lift Table used for installation and removal of EV batteries. Yellow operating panel, blue handle bars, 4 roller wheels, and red operating button.

BT3000

3K Lift Table

Used to facilitate and safely perform the installation and removal of EV batteries, electric car battery packs, transmissions, gearboxes, clutches, engines and various components of the car chassis.

Play Video

CONTACT YOUR REP

MANUAL

SPEC SHEET

Features & Benefits

Specifications

Features & Benefits

Max height of 79.5″
Rechargeable battery powered
Full-loaded swivel casters
Four (4) height-adjustable pads
Emergency stop button

Specifications

entries per page

Search:

BT3300	SPEC
Lifting Capacity	3,000 lbs.
Rise Height	79.5"
Collapsed Height	39.5"
Platform Adjust Height [S]	2.25" - 3.125"
Platform Length	55.125"
Platform Width	29.5"
Platform Height	-
Base Height	7"
Overall length	66"
Motor	24v DC, Charging: 110v

Showing 1 to 10 of 10 entries

Optional Accessories and Upgrades

No accessories available for this product
